Combiner Splitter AS-84
Description
Active Combiner/Splitter in a small form factor (4:8)
The AS-84 is a diversity active combiner/splitter (2 BNC to 4 SMA for each channel) design to be used with up to 4 diversity receivers.
With the AS-84 you can:
- Choose diversity port (PORT 1 or PORT 2 or PORT 1+PORT 2), it allows you to do antenna “zoning”.
- Activate DC feed on inputs ports, the DC feed voltage is 12V regulated and protected against overload.
- Select the appropriate filtering needed: Wideband (WB) or tunable Narrowband (NB).
- Monitor the power on each channel and take a decision to secure your reception.
- Control parameters on the high contrast OLED display.
Compact and rugged this device is build to be used on the field. It can fit your lightweight bag configuration or your cart configuration.
Both active or passive antenna can be connected to BNC. The DC-FEED is current limited and a led display the status on each connector.
The AS-84 is powered from an external DC supply connected to the standard 4 point connector.
A stainless steel wire clip is now included allowing 4 positions mounting.
Unused output port must be terminated with a 50 ohms SMA load.
Spécifications
| Bande passante | 470-700MHz (WB)
470-740MHz tunable (NB 50-70MHz) |
| Gain | 1dB (+/- 1dB) |
| Noise figure amplificateurs | <2 dB |
| OIP3 | 32dBm typ. |
| Isolation A-4 | -80dB typ. |
| Entrées RF | 2xBNC 50 ohms |
| Télé-alimentation | 12V/200mA regulated |
| Sorties RF | 2 x 3 SMA 50 ohms |
| Consommation | 70mA sans DC feed |
| Alimentation | HRS4, 12-17V |
| Dimensions | 88 x 84 x 44mm |
| Poids | 250g |
| Title | Type | Size | |
|---|---|---|---|
|
AS-84-datasheet-EN | application/pdf | 269 KB |
|
User-manual-AS-84-02 | application/pdf | 1,013 KB |
Related products
AS-62 splitter is ready to go!
Description

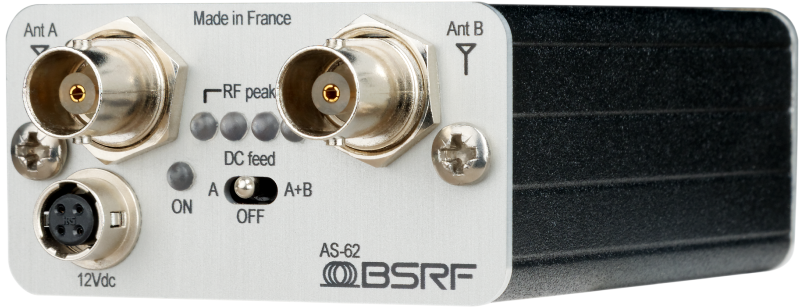

Compact Active splitter 2:6
The AS-62 is a dual channel active antenna splitter (1 BNC to 3 SMA per channel) for use with up to three diversity receivers. With its rugged and compact housing, it is designed for harsh conditions and can easily be used in an audio bag or a sound cart.
The AS-62 has the perfect size for bag configuration. Small and robust it will follow you around the world ! New filtering circuits with improved RF behavior to reject unwanted low band and high band signals. As it’s wideband you
are not limited by blocks.
The AS-62 has now a two step RF peak indicator to be sure you’re not receiveing too strong RF signals. This will help you to secure your reception.
Both passive and active antennas can be plugged in BNC inputs using DC feed feature. Individual current limitation allows to detect that a problem happens on DC feed supply (check manual for more informations).
The unit is powered from an external DC supply plugged in Hirose 4 pin connector.

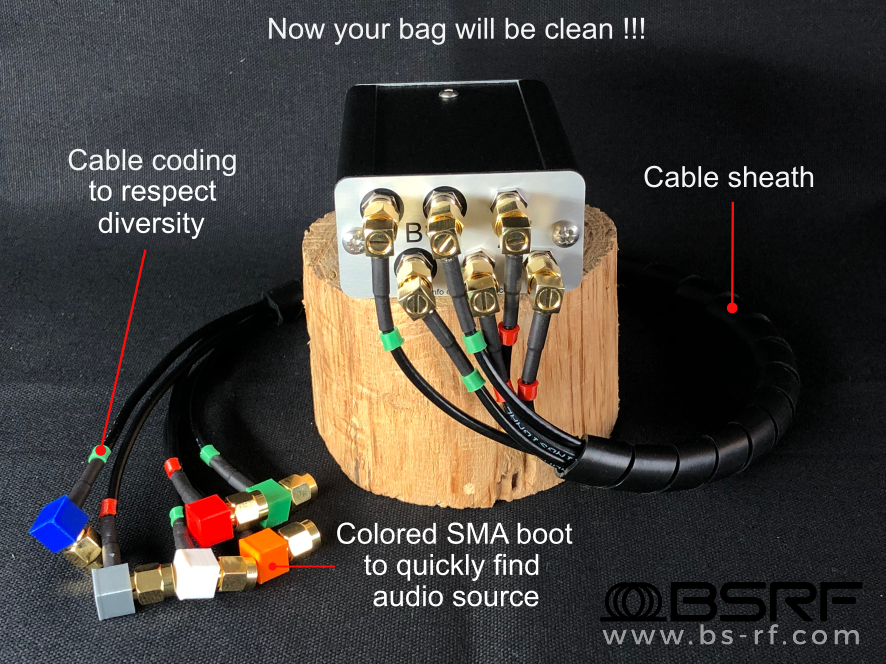

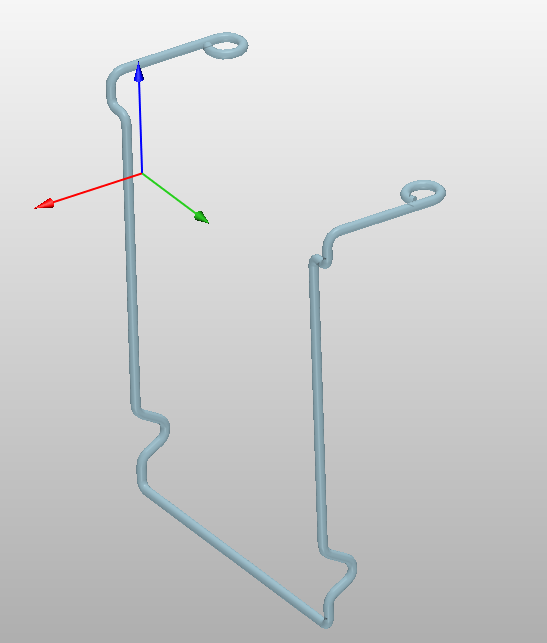

A stainless steel wire clip is now included allowing 4 positions mounting.
Specifications

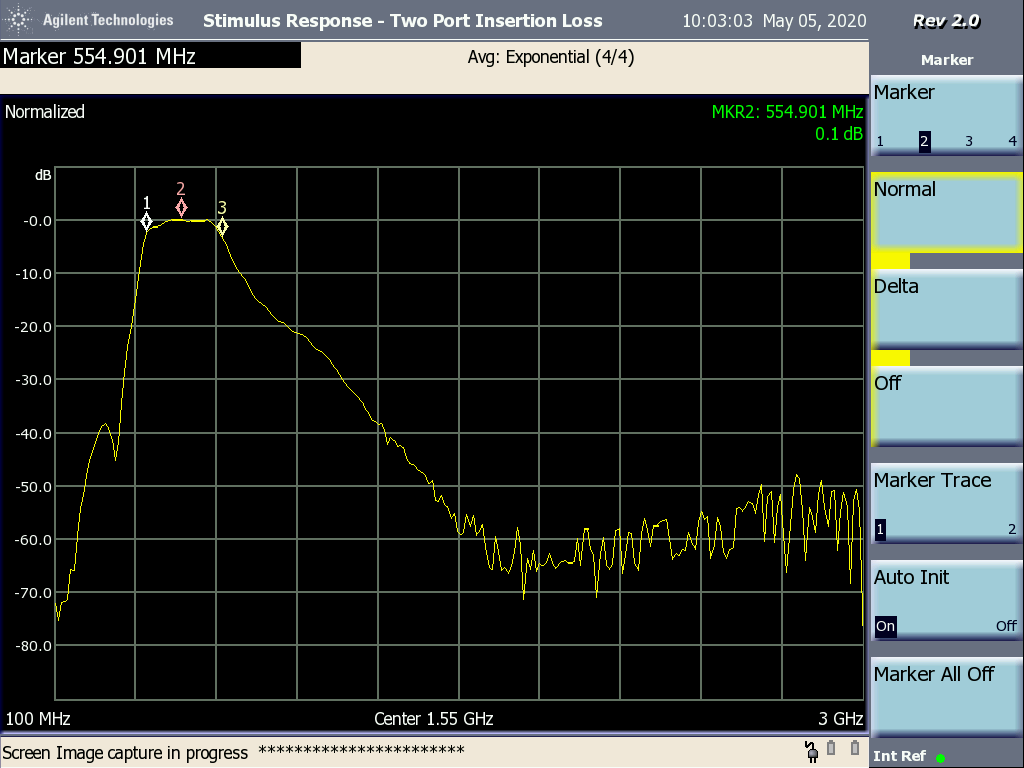

| Bandwidth | 470-700MHz |
| Gain | 0dB (+/- 1dB) |
| Noise figure | <2 dB |
| OIP3 | 39dBm typ. |
| Isolation between outputs | >25dB |
| RF inputs | 2xBNC 50 ohms |
| DC feed | 12-17V/200mA |
| RF outputs | 2 x 3 SMA 50 ohms |
| Current | 150 mA without active antennas |
| Supply | HRS4, 12-17V |
| Dimensions | 83 x 60 x 31mm |
| Weight | 255g |
| Title | Type | Size | |
|---|---|---|---|
|
datasheet-AS-62 | application/pdf | 322 KB |
|
User-manual-AS62-0220 | application/pdf | 3 MB |
Related products
AS-122 splitter.
Description
Dual channel active splitter
AS-122 is a dual channel active antenna splitter (1 BNC to 6 SMA per channel) for use with up to six diversity receivers. With its rugged and compact housing, it is designed for harsh conditions and can easily be used in an audio bag or a sound cart.
Both passive and active antennas can be plugged in BNC inputs using DC feed feature. Individual current limitation allows to detect that a problem happens on DC feed supply (check manual for more informations).
A LED indicates if RF level is too high on each channel. The unit is powered from an external DC supply plugged in Hirose 4 pin connector.
Available now with a reduced power consumption.
A stainless steel wire clip is now included allowing 4 positions mounting.
Specifications

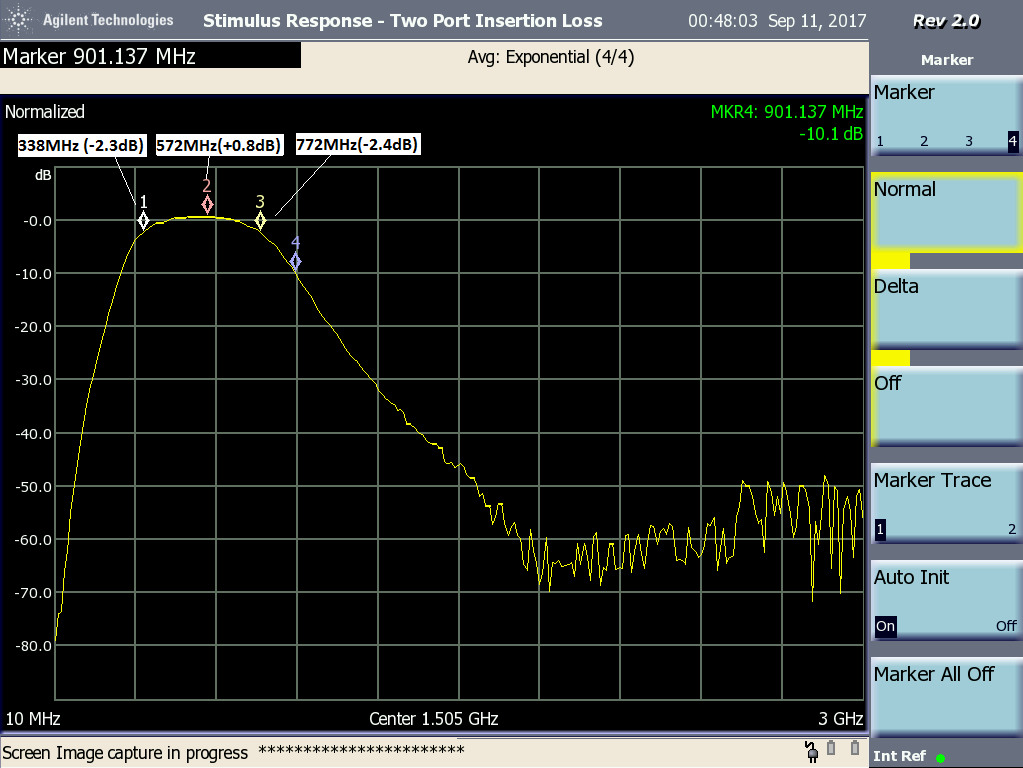

| Bandwidth | 340MHz-770MHz |
| Gain | 0dB (+/- 1dB) |
| Noise figure | 1,5 dB |
| OIP3 | 39dBm |
| Isolation between outputs | min 15 dB |
| RF inputs | 1xBNC 50 ohms |
| DC feed | 12-17V/200mA |
| RF outputs | 2 x 6 SMA 50 ohms |
| Current | 76 mA without active antennas |
| Supply | HRS4, 12-17V |
| Dimensions | 88 x 84 x 44mm |
| Weight | 265g |
| Title | Type | Size | |
|---|---|---|---|
|
AS-122-datasheet-EN | application/pdf | 300 KB |
|
User-manual-AS122-0220 | application/pdf | 3 MB |
