LAC-21 Linear antenna combiner

Category:

Description

2:1 Active combiner with selectable gain.

The LAC-21 is a compact RF combiner particuliary usefull when you need to sum up two TX and share one antenna. As it works from 100MHz up to 800MHz you can imagine many configurations. A switch will help you to select the best gain depending on your devices: +3dB, 0dB and a user position that you can customize by configuring solder jumper on the circuit board. It uses linear amplifiers to reduce intermodulation products.

The rugged enclosure and the push-pull power connector bring to LAC-21 longitivity and security of operation.

Made with machined/extruded aluminium, a highly recyclable material.

Title Type Size
LAC-21-datasheet-EN LAC-21-datasheet-EN application/pdf 497 KB
BSRF PC-2 combiner

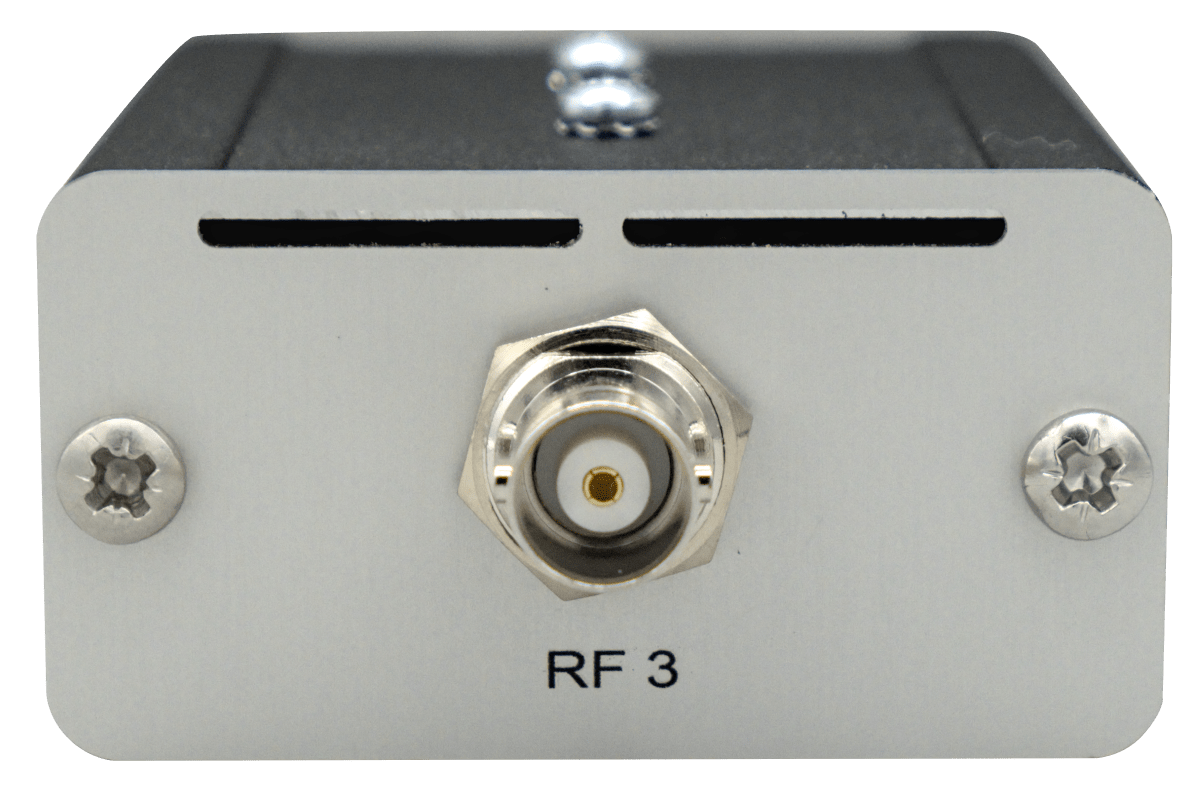

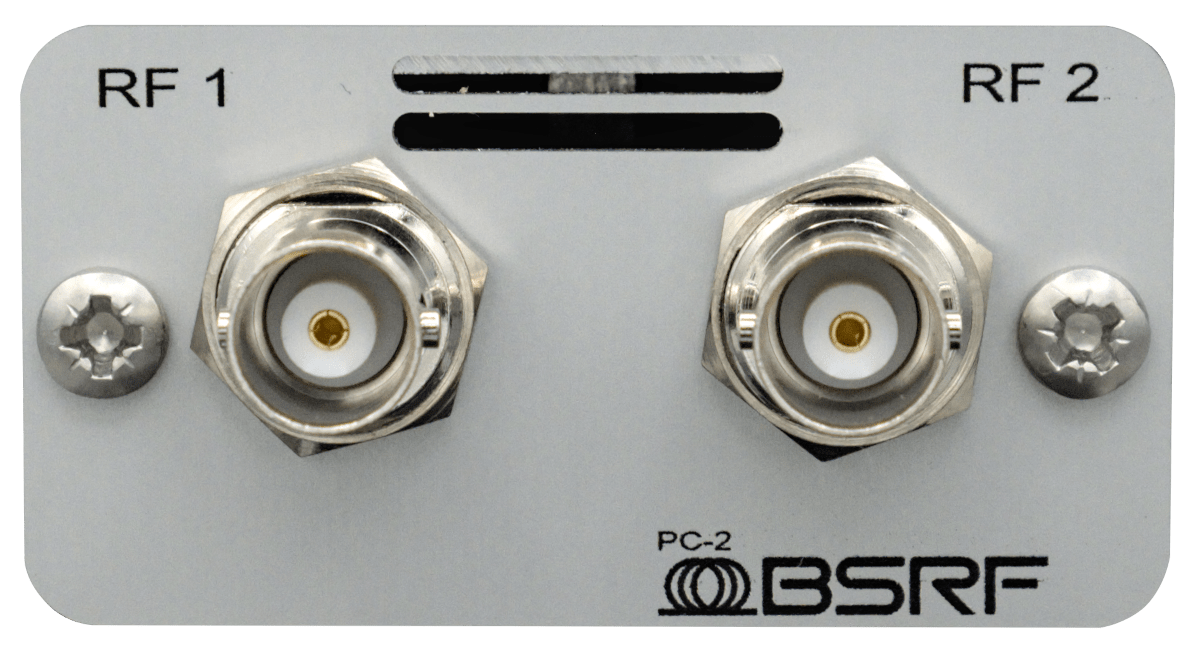

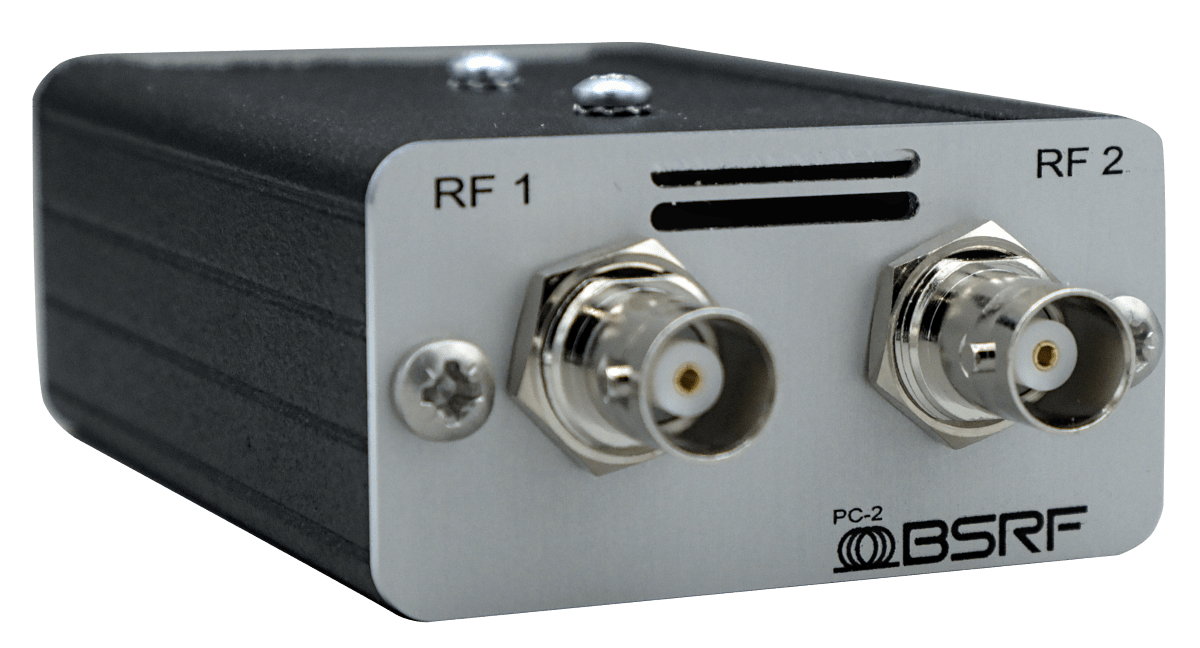

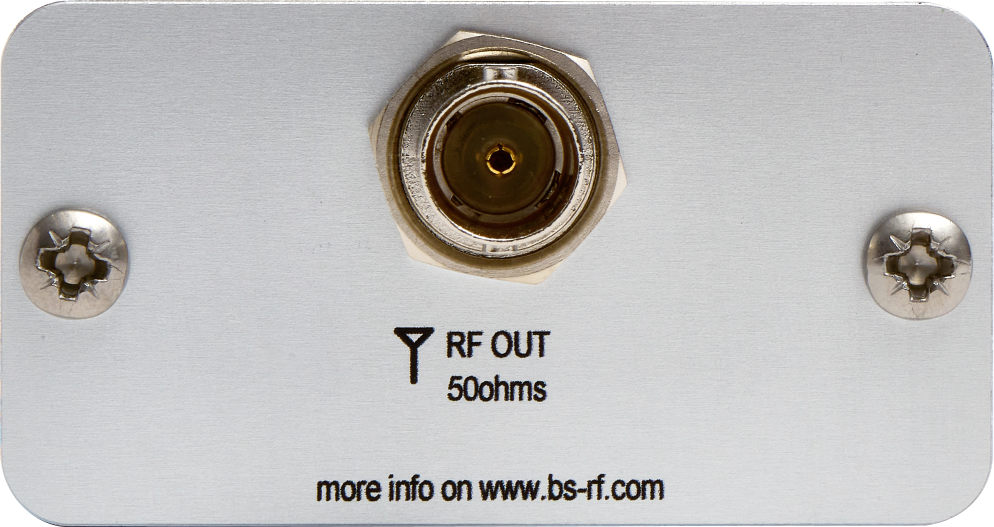

PC-2, Passive power combiner

Category:

Description

UHF Power Signal Combiner

The PC-2 allows you to combine non-coherent signals from UHF transmitters with power up to 2 W.

The PC-2 has an impedance of 50 ohms.

All unused ports must be terminated with a 50-ohm load.

Before turning on the transmitters, all connections must be made.

Specifications

Bandwidth 400-900MHz
Loss 4.5dB typ.
Rated input power (uncoherent) 2W
RF Input/ouput 3BNC 50 ohms
Dimensions 83 x 60 x 81mm
Weight 200g
